TURNBUCKLE US TYPE DROP FORGED JAW AND EYE

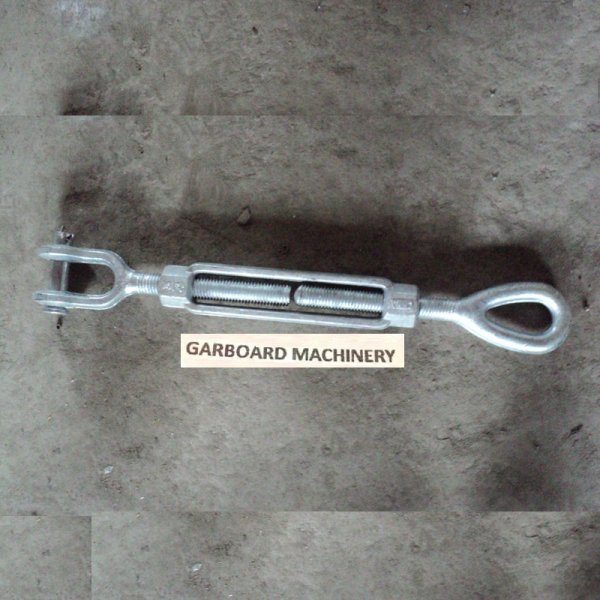

he Jaw Eye Turnbuckle is a popular item among the rigging industries. The jaw of our galvanized steel turnbuckles is fastened with either a nut/bolt or pin/cotter pin assembly depending on the configuration and size. The turnbuckle eye is elongated to reduce stress on the eye and make it easier for shackles and other hardware to pass through. The body of the turnbuckle is reverse thread on opposite ends to allow tightening/loosening by simply turning the body of the turn buckle. These turnbuckles are available in sizes ranging from 1/4″ to 2-3/4″ to fit every project.
Product Features:
Meets the design requirements of US Federal Specifications.
End fittings are Quenched and Tempered, bodies heat treated by normalizing.
Turnbuckles recommended for straight or in-line pulls only.
Proof tested to 2 x WLL and Minimum Break Force is 5 x WLL.
Excellent Fatigue Rating.
Certified for Lifting.

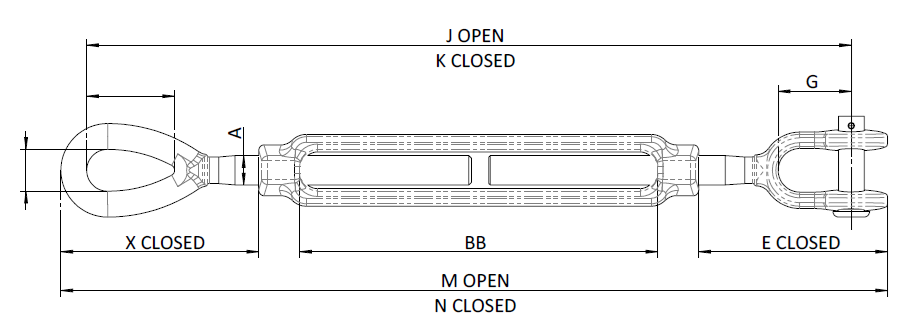

Specifications
| Thread Dia.& Take Up (in.) | Working Load Limit (lbs.) | Weight Each (lbs.) | Dimensions (in.) | |||||||||||
| A | B | E Closed | G | J Open | K Closed | M Open | N Closed | R | S | X Closed | BB | |||
| 1/4X4 | 500 | 0.33 | 0.25 | 0.45 | 1.66 | 0.64 | 11.57 | 7.57 | 12.28 | 8.28 | 0.81 | 0.34 | 1.76 | 4.07 |
| 5/16X4-1/2 | 800 | 0.52 | 0.31 | 0.50 | 2.02 | 0.87 | 13.50 | 9.00 | 14.30 | 9.80 | 0.95 | 0.44 | 2.20 | 4.58 |
| 3/8X6 | 1200 | 0.80 | 0.38 | 0.53 | 2.11 | 0.85 | 16.91 | 10.91 | 17.87 | 11.87 | 1.13 | 0.53 | 2.48 | 6.10 |
| 1/2X6 | 2200 | 1.77 | 0.50 | 0.64 | 3.22 | 1.07 | 19.30 | 13.30 | 20.48 | 14.48 | 1.41 | 0.71 | 3.56 | 6.03 |
| 1/2X9 | 2200 | 2.25 | 0.50 | 0.64 | 3.20 | 1.07 | 25.59 | 16.59 | 26.77 | 17.77 | 1.41 | 0.71 | 3.54 | 9.36 |
| 1/2X12 | 2200 | 2.67 | 0.50 | 0.64 | 3.20 | 1.07 | 31.59 | 19.59 | 32.77 | 20.77 | 1.41 | 0.71 | 3.54 | 12.36 |
| 5/8X6 | 3500 | 2.98 | 0.63 | 0.79 | 3.90 | 1.32 | 20.73 | 14.73 | 22.27 | 16.27 | 1.80 | 0.88 | 4.35 | 6.03 |
| 5/8X9 | 3500 | 3.72 | 0.63 | 0.79 | 3.89 | 1.32 | 27.07 | 18.07 | 28.61 | 19.61 | 1.80 | 0.88 | 4.34 | 9.39 |
| 5/8X12 | 3500 | 4.35 | 0.63 | 0.79 | 3.89 | 1.32 | 33.07 | 21.07 | 34.61 | 22.61 | 1.80 | 0.88 | 4.34 | 12.39 |
| 3/4X6 | 5200 | 4.51 | 0.75 | 0.97 | 4.71 | 1.52 | 22.17 | 16.17 | 24.09 | 18.09 | 2.09 | 1.00 | 5.12 | 6.13 |
| 3/4X9 | 5200 | 5.56 | 0.75 | 0.97 | 4.68 | 1.52 | 28.57 | 19.57 | 30.49 | 21.49 | 2.09 | 1.00 | 5.09 | 9.59 |
| 3/4X12 | 5200 | 6.42 | 0.75 | 0.97 | 4.68 | 1.52 | 34.57 | 22.57 | 36.49 | 24.49 | 2.09 | 1.00 | 5.09 | 12.59 |
| 3/4X18 | 5200 | 8.14 | 0.75 | 0.97 | 4.71 | 1.52 | 46.57 | 28.57 | 48.49 | 30.49 | 2.09 | 1.00 | 5.12 | 18.53 |
| 7/8X12 | 7200 | 9.10 | 0.88 | 1.16 | 5.50 | 1.77 | 35.68 | 23.68 | 37.91 | 25.91 | 2.38 | 1.25 | 5.79 | 12.16 |
| 7/8X18 | 7200 | 11.6 | 0.88 | 1.16 | 5.50 | 1.77 | 48.15 | 30.15 | 50.38 | 32.38 | 2.38 | 1.25 | 5.79 | 18.63 |
| 1X6 | 10000 | 10.0 | 1.00 | 1.34 | 6.09 | 2.05 | 25.03 | 19.03 | 27.59 | 21.59 | 3.00 | 1.43 | 6.50 | 6.18 |
| 1X12 | 10000 | 13.4 | 1.00 | 1.34 | 6.09 | 2.05 | 37.03 | 25.03 | 39.59 | 27.59 | 3.00 | 1.43 | 6.50 | 12.18 |
| 1X18 | 10000 | 16.7 | 1.00 | 1.34 | 6.09 | 2.05 | 49.03 | 31.03 | 51.59 | 33.59 | 3.00 | 1.43 | 6.50 | 18.18 |
| 1X24 | 10000 | 20.6 | 1.00 | 1.34 | 6.06 | 2.05 | 61.63 | 37.63 | 64.19 | 40.19 | 3.00 | 1.43 | 6.47 | 24.84 |
| 1-1/4X12 | 15200 | 20.9 | 1.25 | 1.84 | 8.09 | 2.82 | 40.76 | 28.76 | 43.98 | 31.98 | 3.59 | 1.82 | 8.49 | 12.06 |
| 1-1/4X18 | 15200 | 24.8 | 1.25 | 1.84 | 8.09 | 2.82 | 52.76 | 34.76 | 55.98 | 37.98 | 3.59 | 1.82 | 8.49 | 18.06 |
| 1-1/4X24 | 15200 | 28.8 | 1.25 | 1.84 | 8.09 | 2.82 | 65.32 | 41.32 | 68.54 | 44.54 | 3.59 | 1.82 | 8.49 | 24.62 |
| 1-1/2X12 | 21400 | 30.6 | 1.50 | 2.06 | 8.93 | 2.81 | 42.50 | 30.50 | 46.21 | 34.21 | 4.09 | 2.12 | 9.46 | 12.32 |
| 1-1/2X18 | 21400 | 36.0 | 1.50 | 2.06 | 8.93 | 2.81 | 54.50 | 36.50 | 58.21 | 40.21 | 4.09 | 2.12 | 9.46 | 18.32 |
| 1-1/2X24 | 21400 | 41.5 | 1.50 | 2.06 | 8.93 | 2.81 | 67.12 | 43.12 | 70.83 | 46.83 | 4.09 | 2.12 | 9.46 | 24.94 |
| 1-3/4X18 | 28000 | 52.1 | 1.75 | 2.60 | 9.36 | 3.35 | 55.37 | 37.37 | 59.77 | 41.77 | 4.65 | 2.38 | 9.97 | 18.37 |
| 1-3/4X24 | 28000 | 59.7 | 1.75 | 2.60 | 9.36 | 3.35 | 67.37 | 43.37 | 71.77 | 47.77 | 4.65 | 2.38 | 9.97 | 24.37 |
| 2X24 | 37000 | 89.9 | 2.00 | 2.62 | 11.80 | 3.74 | 72.66 | 48.66 | 77.95 | 53.95 | 5.81 | 2.69 | 13.03 | 24.48 |
| 2-1/2X24 | 60000 | 158 | 2.50 | 3.06 | 13.26 | 4.44 | 76.08 | 52.08 | 82.68 | 58.68 | 6.49 | 3.12 | 13.76 | 24.60 |
| 2-3/4X24 | 75000 | 187 | 2.75 | 3.69 | 14.92 | 4.19 | 78.05 | 54.05 | 85.67 | 61.67 | 7.00 | 3.25 | 15.09 | 24.65 |
