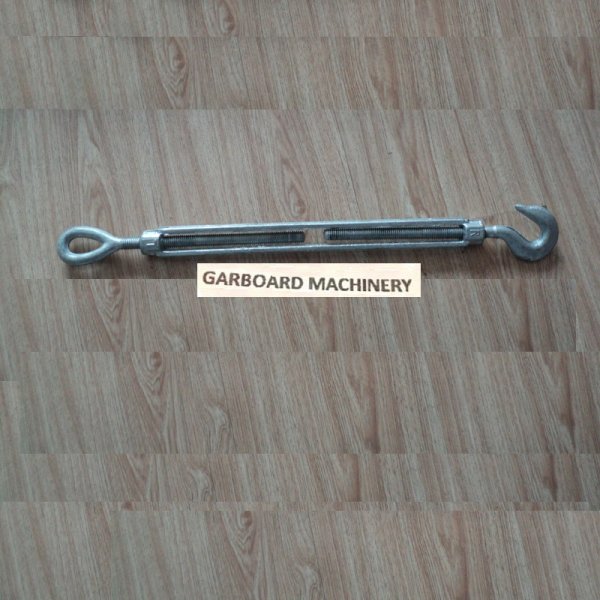

TURNBUCKLE US TYPE DROP FORGED EYE AND HOOK
Hook & Eye turnbuckles feature end fittings that have been heat-treated utilizing its perfected quenched and tempered or normalizing methods. This develops a tougher material that ensures reliable performance in critical applications. Turnbuckle eyes are forged elongated, by design, to minimize stress in the eye and allow for easy connection to ropes, cables, tie rods, and other tensioning systems. These turnbuckles are available in sizes ranging from 1/4″ to 1″ to fit every project.
Products Introduction
Product Features:
Meets the design requirements of US Federal Specifications.
End fittings are Quenched and Tempered, bodies heat treated by normalizing.
Proof tested to 2 x WLL and Minimum Break Force is 5 x WLL.
Excellent Fatigue Rating.
Certified for Lifting.
Specifications

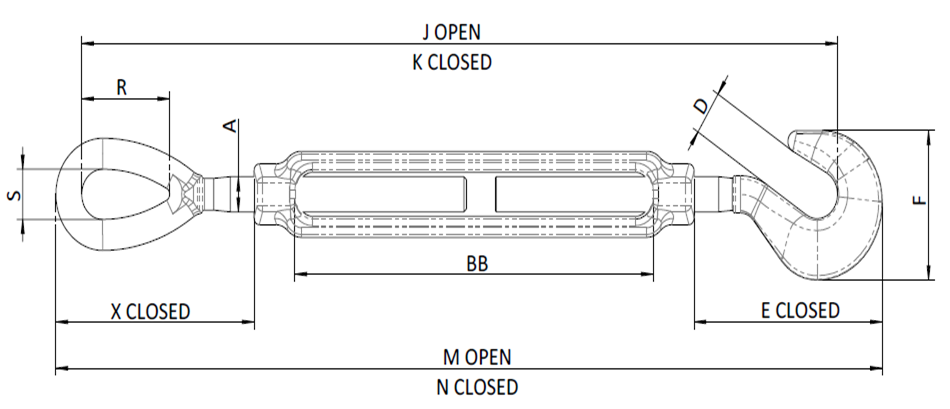

| Thread Dia.& Take Up (in.) | Working Load Limit (lbs.) | Weight Each (lbs.) | Dimensions (in.) | |||||||||||
| A | D | E Closed | F | J Open | K Closed | M Open | N Closed | R | S | X Closed | BB | |||
| 1/4X4 | 400 | 0.29 | 0.25 | 0.45 | 1.59 | 1.27 | 11.46 | 7.46 | 12.09 | 8.09 | 0.78 | 0.34 | 1.75 | 4.00 |
| 5/16X4-1/2 | 700 | 0.49 | 0.31 | 0.50 | 1.94 | 1.50 | 13.19 | 8.69 | 13.47 | 9.47 | 0.94 | 0.44 | 2.09 | 4.50 |
| 3/8X6 | 1000 | 0.78 | 0.38 | 0.56 | 2.30 | 1.77 | 16.98 | 10.98 | 17.49 | 11.94 | 1.12 | 0.53 | 2.52 | 6.00 |
| 1/2X6 | 1500 | 1.61 | 0.50 | 0.66 | 2.94 | 2.28 | 18.45 | 12.45 | 19.67 | 13.67 | 1.44 | 0.72 | 3.23 | 6.00 |
| 1/2X9 | 1500 | 1.85 | 0.50 | 0.66 | 2.94 | 2.28 | 24.45 | 15.45 | 25.67 | 16.67 | 1.44 | 0.72 | 3.23 | 9.00 |
| 1/2X12 | 1500 | 2.26 | 0.50 | 0.66 | 2.94 | 2.28 | 30.45 | 18.45 | 31.67 | 19.67 | 1.44 | 0.72 | 3.23 | 12.00 |
| 5/8X6 | 2250 | 2.70 | 0.63 | 0.84 | 3.69 | 2.81 | 19.96 | 13.96 | 21.47 | 15.47 | 1.75 | 0.88 | 3.90 | 6.00 |
| 5/8X9 | 2250 | 3.13 | 0.63 | 0.84 | 3.69 | 2.81 | 25.96 | 16.96 | 27.47 | 18.47 | 1.75 | 0.88 | 3.90 | 9.00 |
| 5/8X12 | 2250 | 3.78 | 0.63 | 0.84 | 3.69 | 2.81 | 31.96 | 19.96 | 33.47 | 21.47 | 1.75 | 0.88 | 3.90 | 12.00 |
| 3/4X6 | 3000 | 3.89 | 0.75 | 0.98 | 4.52 | 3.33 | 21.63 | 15.63 | 23.45 | 17.45 | 2.09 | 1.00 | 4.69 | 6.00 |
| 3/4X9 | 3000 | 4.61 | 0.75 | 0.98 | 4.52 | 3.33 | 27.63 | 18.63 | 29.45 | 20.45 | 2.09 | 1.00 | 4.69 | 9.00 |
| 3/4X12 | 3000 | 5.83 | 0.75 | 0.98 | 4.52 | 3.33 | 33.63 | 21.63 | 35.45 | 23.45 | 2.09 | 1.00 | 4.69 | 12.00 |
| 3/4X18 | 3000 | 6.33 | 0.75 | 0.98 | 4.52 | 3.33 | 45.63 | 27.63 | 47.45 | 29.45 | 2.09 | 1.00 | 4.69 | 18.00 |
| 7/8X12 | 4000 | 8.10 | 0.88 | 1.13 | 5.19 | 3.78 | 34.78 | 22.78 | 36.91 | 24.91 | 2.38 | 1.25 | 5.10 | 12.00 |
| 7/8X18 | 4000 | 9.95 | 0.88 | 1.13 | 5.19 | 3.78 | 46.78 | 28.78 | 48.91 | 30.91 | 2.38 | 1.25 | 5.10 | 18.00 |
| 1X6 | 5000 | 9.33 | 1.00 | 1.25 | 5.84 | 4.25 | 24.80 | 18.80 | 27.20 | 21.20 | 3.00 | 1.44 | 6.36 | 6.00 |
| 1X12 | 5000 | 11.93 | 1.00 | 1.25 | 5.84 | 4.25 | 36.80 | 24.78 | 39.20 | 27.20 | 3.00 | 1.44 | 6.36 | 12.00 |
| 1X18 | 5000 | 14.00 | 1.00 | 1.25 | 5.84 | 4.25 | 48.80 | 30.80 | 51.20 | 33.20 | 3.00 | 1.44 | 6.36 | 18.00 |
| 1X24 | 5000 | 17.25 | 1.00 | 1.25 | 5.84 | 4.25 | 60.80 | 36.80 | 63.20 | 39.20 | 3.00 | 1.44 | 6.36 | 24.00 |
| 1-1/4X12 | 6500 | 19.00 | 1.25 | 1.50 | 7.22 | 5.13 | 39.13 | 27.13 | 42.06 | 30.06 | 3.56 | 1.81 | 7.72 | 12.00 |
| 1-1/4X18 | 6500 | 23.00 | 1.25 | 1.50 | 7.22 | 5.13 | 51.13 | 33.13 | 54.06 | 36.06 | 3.56 | 1.81 | 7.72 | 18.00 |
| 1-1/4X24 | 6500 | 24.00 | 1.25 | 1.50 | 7.22 | 5.13 | 63.13 | 39.13 | 66.06 | 42.06 | 3.56 | 1.81 | 7.72 | 24.00 |
| 1-1/2X12 | 7500 | 27.50 | 1.50 | 1.88 | 8.34 | 5.75 | 41.72 | 29.72 | 44.72 | 32.72 | 4.06 | 2.12 | 8.62 | 12.00 |
| 1-1/2X18 | 7500 | 31.00 | 1.50 | 1.88 | 8.34 | 5.75 | 53.72 | 35.72 | 56.72 | 38.72 | 4.06 | 2.12 | 8.62 | 18.00 |
| 1-1/2X24 | 7500 | 37.50 | 1.50 | 1.88 | 8.34 | 5.75 | 65.72 | 41.72 | 68.72 | 44.72 | 4.06 | 2.12 | 8.62 | 24.00 |
