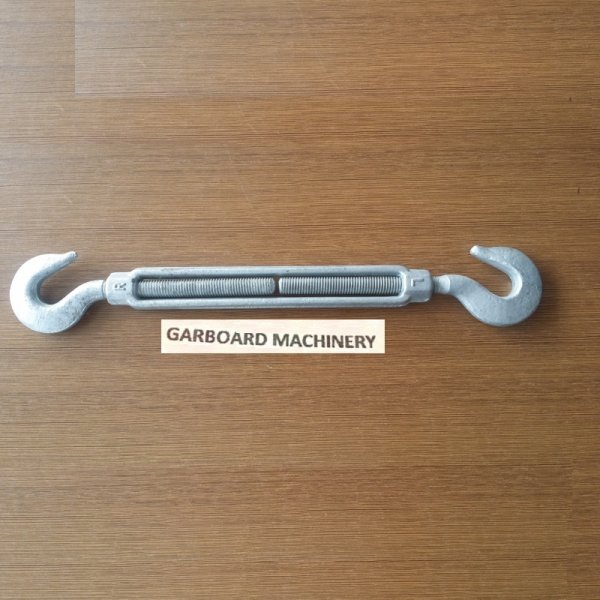

TURNBUCKLE US TYPE DROP FORGED HOOK AND HOOK

A Hook & Hook Turnbuckle is a very common steel turnbuckle throughout the rigging industry. The hook on the end makes for easy connections/disconnections for the turn buckle. With the body of the turnbuckle having a reverse thread on each end, it makes the assembly exceptionally easy to tighten and loosen by simply twisting the body of the turnbuckle. These turnbuckles are available in sizes ranging from 1/4″ to 2-3/4″ to fit every project and are made from super carbon steel for maximum corrosion resistance and durability. They are ideal for marine and industrial applications.

[email protected]

chris-yushanwei

+86-13953206937

Send Message

Products Introduction| Specifications| Related Products| Inquiry

Products Introduction

Product Features:

Meets the design requirements of US Federal Specifications.

End fittings are Quenched and Tempered, bodies heat treated by normalizing.

Proof tested to 2 x WLL and Minimum Break Force is 5 x WLL.

Excellent Fatigue Rating.

Certified for Lifting.

Specifications

US TYPE DROP FORGED TURNBUCKLE HOOK HOOK

Specifications

Thread Dia	Working load limited	Weight	Dimensions(in)
&	Working load limited	Each	A	D	E	F	J	K	M	N	BB
Take Up	(lbs)	(lbs)	A	D	Closed	F	Open	Closed	Open	Closed	BB
1/4×4	400	0.33	0.25	0.45	1.59	1.27	11.12	7.12	11.94	7.94	4
5/16×41/2	700	0.47	0.31	0.5	1.94	1.5	12.81	8.31	13.81	9.31	4.5
3/8×6	1000	0.78	0.38	0.56	2.3	1.77	16.5	10.5	17.72	11.72	6
1/2×6	1500	1.6	0.5	0.66	2.94	2.28	17.82	11.82	19.38	13.38	6
1/2×9	1500	1.83	0.5	0.66	2.94	2.28	23.82	14.82	25.35	16.38	9
1/2×12	1500	2.28	0.5	0.66	2.94	2.28	29.82	17.82	31.38	19.38	12
5/8×6	2250	2.75	0.63	0.84	3.69	2.81	19.25	13.25	21.25	15.25	6
5/8×9	2250	3.38	0.63	0.84	3.69	2.81	25.25	16.25	27.25	18.25	9
5/8×12	2250	3.5	0.75	0.84	3.69	2.81	31.25	19.25	33.25	21.25	12
3/4×6	3000	3.89	0.75	0.98	4.52	3.33	20.88	14.88	23.28	17.28	6
3/4×9	3000	5.28	0.75	0.98	4.52	3.33	26.88	17.88	29.28	20.28	9
3/4×12	3000	5.43	0.75	0.98	4.52	3.33	32.88	20.88	35.28	23.28	12
3/4×18	3000	6.33	0.88	0.98	4.52	3.33	44.88	26.88	47.28	29.28	18
7/8×12	4000	8.1	0.88	1.13	5.19	3.78	34.25	22.25	37	25	12
7/8×18	4000	9.95	1	1.13	5.19	3.78	46.25	28.25	49	31	18
1×6	5000	9.33	1	1.25	5.84	4.25	23.63	17.63	26.69	20.69	6
1×12	5000	11.93	1	1.25	5.84	4.25	35.63	23.63	38.69	26.69	12
1×18	5000	14	1	1.25	5.84	4.25	47.63	29.63	50.69	32.69	18
1×24	5000	17.25	1.25	1.25	5.84	4.25	59.63	35.63	62.69	38.69	24
1.1/4×12	6500	20.58	1.25	1.5	7.22	5.13	37.94	25.94	41.56	29.56	12
1.1/4×18	6500	23	1.25	1.5	7.22	5.13	49.94	31.94	53.56	35.56	18
1.1/4×24	6500	27	1.5	1.5	7.22	5.13	61.94	37.94	65.56	41.56	24
1.1/2×12	7500	27.5	1.5	1.88	8.34	5.75	40.94	28.94	43.44	32.44	12
1.1/2×18	7500	31	1.5	1.88	8.34	5.75	52.96	34.94	56.44	38.44	18
1.1/2×24	7500	37.5	1.5	1.88	8.34	5.75	64.94	40.94	68.44	44.44	24
