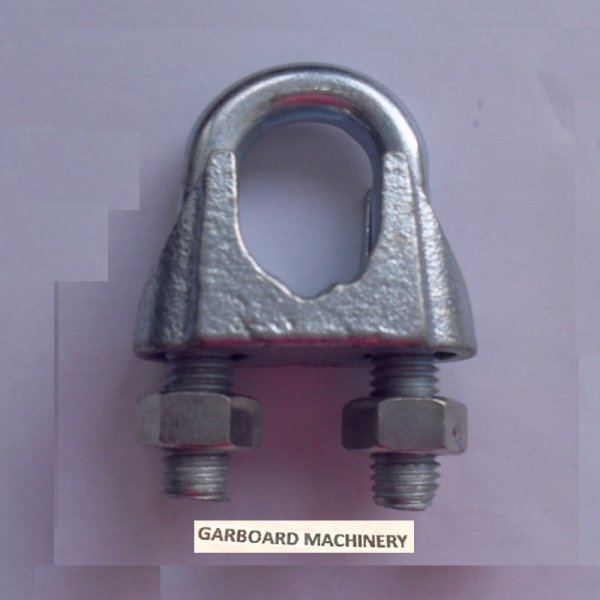

US TYPE MALLEABLE WIRE ROPE CLIP
Malleable Wire Rope Clips are a light duty wire rope clip perfect for fencing, hand rails, animal runs, and other applications that do not sustain loads overhead. Do not use malleable clips for critical, heavy duty, or overhead loads. Our range of wire rope clip is available in standard as well as customized sizes.
Products Introduction
Product Features:
Malleable Cast Body, Steel U Bolt.
Zinc Plated.
According to Federal Specification FF-C-450 D, Type 1, Class 2.
Packing: Cartons or Gunny bags, then pack on pallets.
Specifications

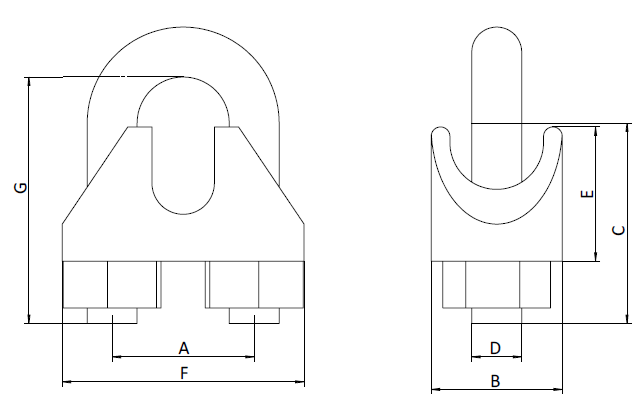

| SIZE MM | A MM | B MM | C MM | D IN | E MM | F MM | G MM | W/100PCS KGS |
| 1/8 | 11 | 14 | 14 | 1/4 | 10.8 | 22 | 20 | 1.54 |
| 3/16 | 14.5 | 15 | 16 | 1/4 | 13 | 26 | 24 | 2.5 |
| 1/4 | 17 | 18.5 | 20 | 5/16 | 15 | 32 | 31 | 5.3 |
| 5/16 | 18.3 | 20 | 22 | 5/16 | 16 | 35 | 34 | 5.9 |
| 3/8 | 22.5 | 22 | 27 | 3/8 | 22 | 40.5 | 41 | 11 |
| 7/16 | 24 | 23 | 30 | 3/8 | 22 | 43 | 42 | 11 |
| 1/2 | 27 | 26 | 35 | 7/16 | 23.3 | 49 | 53 | 18.5 |
| 9/16 | 30 | 26.5 | 40 | 1/2 | 27 | 52.5 | 54 | 25 |
| 5/8 | 33 | 28 | 40 | 1/2 | 28 | 57.5 | 59 | 28 |
| 3/4 | 34.5 | 32 | 42 | 9/16 | 34 | 61 | 68 | 35 |
| 7/8 | 41 | 37 | 46 | 5/8 | 38 | 71 | 78 | 53 |
| 1 | 45.5 | 42 | 55 | 5/8 | 43 | 77.5 | 87 | 66.6 |
