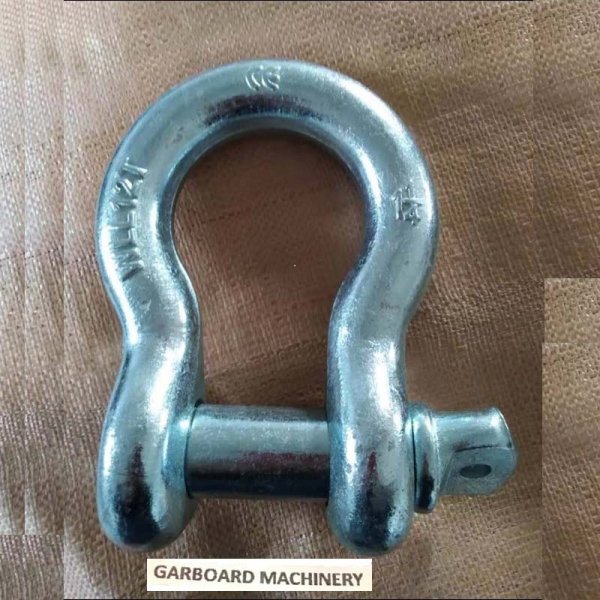

SCREW PIN ANCHOR SHACKLE US TYPE G-209

G-209 Screw pin anchor shackles have a large rounded shape that allows them to take loads from many directions without developing significant side load. That makes them ideal for use with multiple-leg slings, connecting slings to load rings, and accommodating a wider strap. The screw pin configuration is best for use in applications that are temporary, or require repeated and/or quick connections and disconnections.

[email protected]

chris-yushanwei

+86-13953206937

Send Message

Products Introduction| Specifications| Related Products| Inquiry

Products Introduction

Product Features:

• Standard Screw Pin.

• Forged – Quenched and Tempered.

• Zinc Plated, Hot Dipped Galvanized and Powder Coating.

• Satisfies ASME B30.26 requirements.

• Safety Factor: 6:1.

• WLL embossed on each shackle.

Specifications

Size	Working	Weight	Dimensions (in.)							Tolerance +/-
	Load
	Limited
(in.)	(t)	(lbs)	A	B	C	E	G	H	P	C	A
3/16	1/3	0.06	0.38	0.25	0.88	0.6	0.98	1.47	0.19	0.06	0.06
1/4	1/2	0.1	0.47	0.31	1.13	0.78	1.28	1.84	0.25	0.06	0.06
5/16	3/4	0.19	0.53	0.38	1.22	0.84	1.47	2.09	0.31	0.06	0.06
3/8	1	0.31	0.66	0.44	1.44	1.03	1.78	2.49	0.38	0.13	0.06
7/16	1-1/2	0.38	0.75	0.5	1.69	1.16	2.03	2.91	0.44	0.13	0.06
1/2	2	0.72	0.81	0.63	1.88	1.31	2.31	3.28	0.5	0.13	0.06
5/8	3-1/4	1.37	1.06	0.75	2.38	1.69	2.94	4.19	0.69	0.13	0.06
3/4	4-3/4	2.35	1.25	0.88	2.81	2	3.5	4.97	0.81	0.25	0.06
7/8	6-1/2	3.62	1.44	1	3.31	2.28	4.03	5.83	0.97	0.25	0.06
1	8-1/2	5.03	1.69	1.13	3.75	2.69	4.69	6.56	1.06	0.25	0.06
1-1/8	9-1/2	7.41	1.81	1.25	4.25	2.91	5.16	7.47	1.25	0.25	0.06
1/1/4	12	9.5	2.03	1.38	4.69	3.25	5.75	8.25	1.38	0.25	0.06
1-3/8	13-1/2	13.53	2.25	1.5	5.25	3.63	6.38	9.16	1.5	0.25	0.13
