LEVER TYPE LOAD BINDER
LEVER TYPE LOAD BINDER ()
< Go to  LOAD BINDER

LEVER TYPE LOAD BINDER

Lever Load Binder, also called a snap binder, lever chain or lever load binder. Chain-tensioning device uses a leverage action to tighten and secure loads. With a tension hook on each end, this binder requires more strength to tighten than ratchet binders. The Lever Chain Binders are manufactured using superior grade raw material as per international qualitative standards. Our range of lever chain load binder is available in standard as well as customized sizes.

[email protected]
chris-yushanwei
+86-13953206937
Send Message
Products Introduction| Specifications| Related Products| Inquiry
Products Introduction
Product Features:
• Material: Drop Forged Steel.
• Handle: Drop forged, casting.
• Heat Treated, Quenched and Tempered.
• Finishing: Powder Coated or Galvanized.
• Fitted with grab hooks for easy connection.
• Do not exceed Working Load Limits (W.L.L).
• Meets D.O.T. Specs.
LEVER TYPE LOAD BINDER L150
Specifications

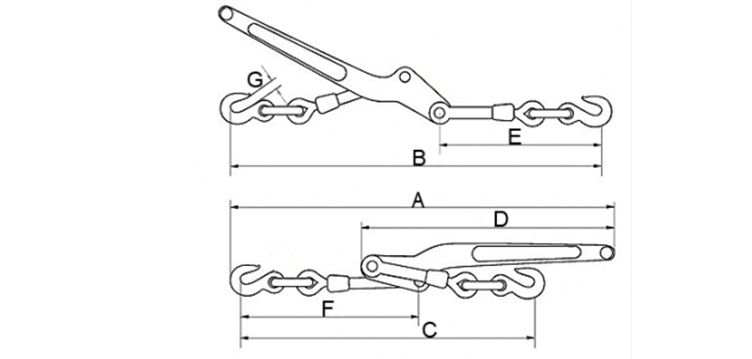

SIZEWLLProof LoadMin Ultimate LoadWeightHandle LengthDimensions(IN.)
IN.LBSLBSLBSKGIN.ABCDEFG
1/4"-5/16"2200440078001.611.4218.517.314.1711.428.278.070.35
5/16"-3/8"540010800190007.021624.1322.1317.881610.3810.380.5
3/8"-1/2"9200184003300012.4718.6928.7525.7521.2518.6912.3112.380.63
1/2"-5/8"13000260004600019.682131.2529.75252114.6313.750.72

Chain Binders are essential equipment in the flatbed industry. Also called a load binder, or chain load binder.
