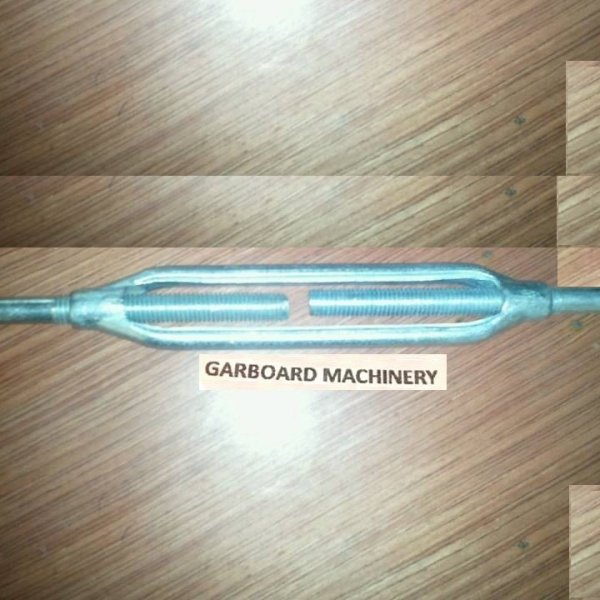

Product Features:
Meets the design requirements of US Federal Specifications.
End fittings are Quenched and Tempered, bodies heat treated by normalizing.
Jaws are forged with a greater cross sectional area that results in a stronger jaw with better fatigue properties.
Turnbuckles recommended for straight or in-line pulls only.
Proof tested to 2 x WLL and Minimum Break Force is 5 x WLL.
Certified for Lifting.
Specifications

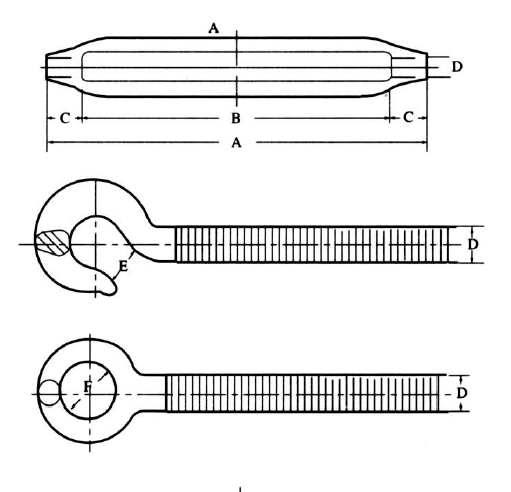

| NOMINAL SIZE | (1) BODY ONLY | (2) EYE&EYE | (3)HOOK&EYE | (4) HOOK & HOOK | (6)WITH STUBS | ||||||||||||||
| A | B | C | T.L | W/PC | F | T.L | W/PC | T.L | W/PC | E | T.L | W/PC | H | I(A2) | G | W/PC | |||
| mm | in | mm | in | mm | mm | Ton | Kg | mm | Ton | Kg | Ton | Kg | mm | Ton | Kg | mm | mm | mm | Kg |
| 6 | 1/4 | 100 | 4 | 78 | 11 | 1 | 0.08 | 10 | 0.1 | 0.116 | 0.04 | 0.114 | 9 | 0.04 | 0.112 | 80 | 50 | 5.3 | 0.112 |
| 8 | 5/16 | 125 | 5 | 100 | 12.5 | 1.2 | 0.15 | 12 | 0.2 | 0.22 | 0.08 | 0.218 | 9 | 0.08 | 0.215 | 100 | 63 | 6.9 | 0.22 |
| 9 | 3/8 | 150 | 6 | 120 | 12.5 | 1.5 | 0.17 | 16 | 0.5 | 0.30 | 0.15 | 0.293 | 11 | 0.15 | 0.29 | 130 | 75 | 8.3 | 0.273 |
| 12 | 1/2 | 200 | 8 | 164 | 18 | 2 | 0.29 | 20 | 2 | 0.58 | 0.35 | 0.585 | 16 | 0.35 | 0.57 | 150 | 100 | 11.2 | 0.51 |
| 16 | 5/8 | 250 | 10 | 202 | 21.5 | 3 | 0.52 | 22 | 3 | 1.07 | 0.7 | 1.05 | 19 | 0.7 | 1.03 | 180 | 125 | 14.2 | 0.95 |
| 19 | 3/4 | 300 | 12 | 250 | 25 | 4 | 0.85 | 28 | 4 | 1.77 | 1.0 | 1.78 | 20 | 1.0 | 1.77 | 220 | 150 | 17.2 | 1.62 |
| 22 | 7/8 | 325 | 13 | 269 | 28 | 5 | 1.17 | 33 | 5 | 2.55 | 1.5 | 2.58 | 21 | 1.5 | 2.60 | 250 | 165 | 20.3 | 2.34 |
| 25 | 1 | 350 | 14 | 285 | 32.5 | 6 | 1.69 | 35 | 6 | 3.79 | 2.0 | 3.77 | 26 | 2.0 | 3.72 | 270 | 175 | 23.3 | 3.27 |
| 32 | 1-1/4 | 400 | 16 | 310 | 45 | 8 | 3.51 | 36X70 | 10 | 7.6 | 3.0 | 7.52 | 34 | 3.0 | 7.44 | 300 | 200 | 29 | 6.52 |
| 38 | 1-1/2 | 450 | 18 | 350 | 55 | 10 | 5.08 | 40X80 | 15 | 13.50 | 4.0 | 12.8 | 35 | 4.0 | 22 | 330 | 225 | 38 | 13 |
| 44 | 1-3/4 | 500 | 20 | 386 | 57 | ▬ | 9.00 | ▬ | ▬ | ▬ | ▬ | ▬ | ▬ | ▬ | 22 | ▬ | 250 | 44 | ▬ |
| 50 | 2 | 550 | 22 | 420 | 65 | ▬ | 11.50 | ▬ | ▬ | ▬ | ▬ | ▬ | ▬ | ▬ | 29 | ▬ | 275 | 50 | ▬ |
