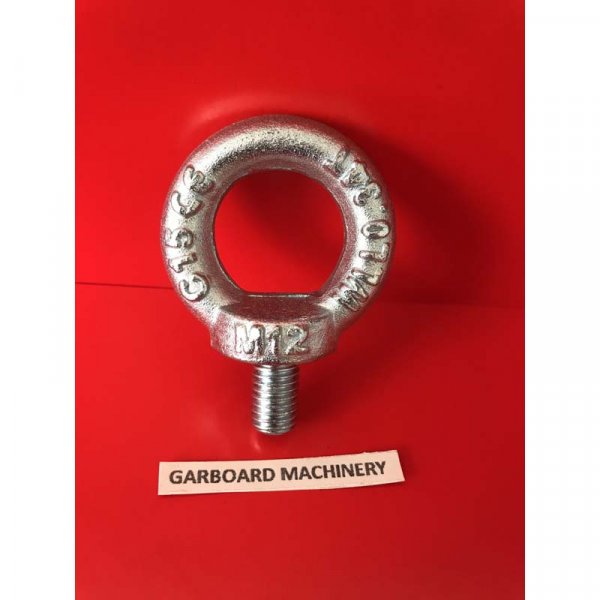

EYE SCREW DIN580

Lifting Eye Nuts and Bolts are designed to provide a lifting point to attach a hook or rope prior to lifting heavy objects. They are suitable for outdoor environments. Our these Lifting Eye Bolts are strong and robust, and correspond to standard sheet DIN580.

[email protected]

chris-yushanwei

+86-13953206937

Send Message

Products Introduction| Specifications| Related Products| Inquiry

Products Introduction

Specifications

DIN580 EYE BOLTS
SIZE(d1)	d2	d3	d4	e	h	k	l	WEIGHT	WLL
	MM	MM	MM	MM	MM	MM	MM	KG/PC	TON
M6	20	36	20	6	36	8	13	0.06	0.08
M8	20	36	20	6	36	8	13	0.06	0.14
M10	25	45	25	8	45	10	17	0.11	0.23
M12	30	54	30	10	53	12	20.5	0.18	0.34
M14	35	63	35	12	62	14	27	0.28	0.34
M16	35	63	35	12	62	14	27	0.28	0.7
M18	40	72	40	14	71	16	30	0.45	0.7
M20	40	72	40	14	71	16	30	0.45	1.2
M22	50	90	50	18	90	20	36	0.87	1.2
M24	50	90	50	18	90	20	36	0.87	1.8
M27	65	108	60	22	109	24	45	1.66	1.8
M30	65	108	60	22	109	24	45	1.66	3.2
M33	75	126	70	26	128	28	54	2.65	3.2
M36	75	126	70	26	128	28	54	2.65	4.6
M39	85	144	80	30	147	32	63	4.03	4.6
M42	85	144	80	30	147	32	63	4.03	6.3
M45	100	166	90	35	168	38	68	6.38	6.3
M48	100	166	90	35	168	38	68	6.38	8.6
M52	110	184	100	38	187	42	78	8.8	8.6
M56	110	184	100	38	187	42	78	8.8	11.5
M64	120	206	110	42	208	48	90	12.4	16
M72X6	150	260	140	50	260	60	100	23.3	20
M80X6	170	296	160	55	298	68	112	34.2	28
M100X6	190	330	180	60	330	75	130	49.1	40
