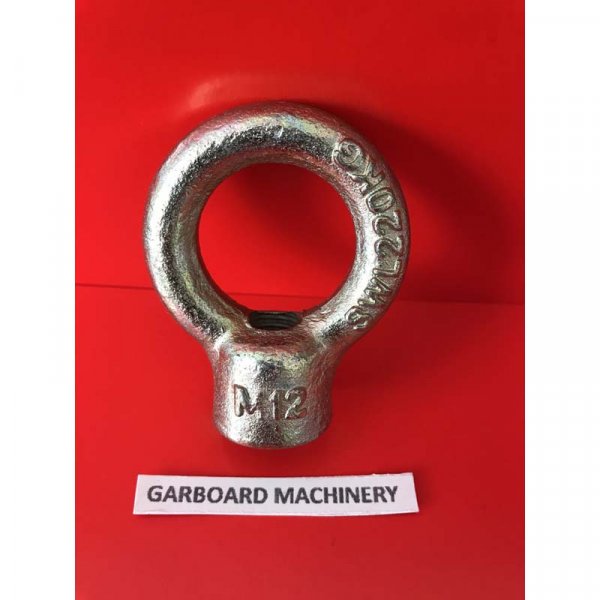

EYE NUT JIS1169
Lifting Eye Nuts and Bolts are designed to provide a lifting point to attach a hook or rope prior to lifting heavy objects. They are suitable for outdoor environments. Our these Lifting Eye Bolts are strong and robust, and correspond to standard sheet JIS1168
Products Introduction
Product Features:
Made by Carbon Steel.
Zinc Plated, Hot Dip Galvanized, Powder Coated. Self-Colored are all available.
Forged eye bolt meet the performance requirements of JIS B 1169
Special specifications and marks can be made according to customer’s requirements.
Specifications
| JIS B 1169 TYPE EYE NUT | ||||||||||
| SIZE | a | b | c | D | t | h | H | SWL | WEIGHT | |
| MM | MM | MM | MM | MM | MM | MM | kg | kN | KG/PC | |
| M6 | 26 | 16 | 5 | 13 | 10 | 19 | 32.5 | 60 | 0.588 | 0.015 |
| M8 | 32.6 | 20 | 6.3 | 16 | 12 | 23 | 39.3 | 80 | 0.785 | 0.03 |
| M10 | 41 | 25 | 8 | 20 | 15 | 28 | 48.5 | 150 | 1.47 | 0.06 |
| M12 | 50 | 30 | 10 | 25 | 19 | 36 | 61 | 220 | 2.16 | 0.125 |
| M14 | 60 | 35 | 12.5 | 30 | 23 | 42 | 72 | 330 | 3.23 | 0.23 |
| M16 | 60 | 35 | 12.5 | 30 | 23 | 42 | 72 | 450 | 4.41 | 0.22 |
| M18 | 72 | 40 | 16 | 35 | 28 | 50 | 86 | 540 | 5.29 | 0.39 |
| M20 | 72 | 40 | 16 | 35 | 28 | 50 | 86 | 630 | 6.18 | 0.38 |
| M22 | 81 | 45 | 18 | 40 | 33 | 58 | 98.5 | 790 | 7.74 | 0.56 |
| M24 | 90 | 50 | 20 | 45 | 38 | 66 | 111 | 950 | 9.32 | 0.8 |
| M27 | 110 | 60 | 25 | 60 | 46 | 80 | 135 | 1200 | 11.7 | 1.62 |
| M30 | 110 | 60 | 25 | 60 | 46 | 80 | 135 | 1500 | 14.7 | 1.58 |
| M33 | 110 | 60 | 25 | 60 | 46 | 80 | 135 | 1900 | 18.6 | 1.51 |
| M36 | 133 | 70 | 31.5 | 70 | 55 | 95 | 161.5 | 2300 | 22.6 | 2.75 |
| M42 | 151 | 80 | 35.5 | 80 | 64 | 109 | 184.5 | 3400 | 33.3 | 4.1 |
| M48 | 170 | 90 | 40 | 90 | 73 | 123 | 208 | 4500 | 44.1 | 5.9 |
| M64 | 210 | 110 | 50 | 110 | 90 | 151 | 256 | 9000 | 88.3 | 10.5 |
