CONNECTING LINK EUROPEAN TYPE G80
CONNECTING LINK EUROPEAN TYPE G80 ()
< Go to  LINKS
  /

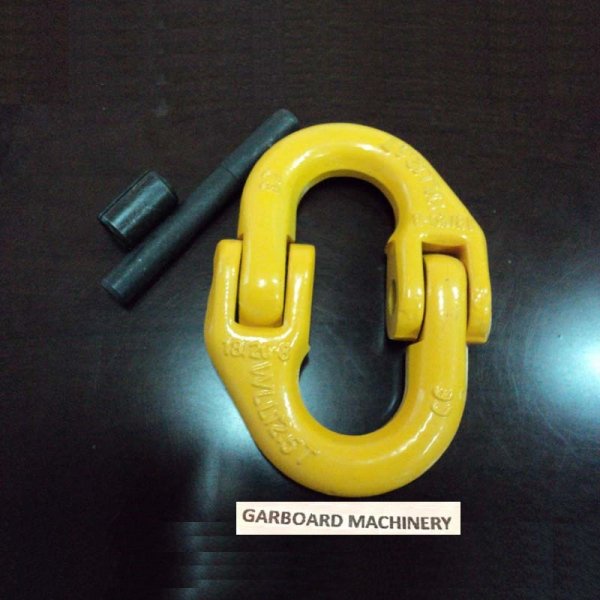

CONNECTING LINK EUROPEAN TYPE G80

G80 Connecting Link provide fast, easy assembly without the need for special tools. Designed for attaching hooks, master links and other fittings to Grade 80 alloy steel chains.
Manufactured to the most exacting quality control standards, our g80 connecting link combines the qualities of high strength, low weight and durability resulting in easy, safe handling. Available in sizes ranging from 6.0mm – 38mm.

[email protected]
chris-yushanwei
+86-13953206937
Send Message
Products Introduction| Specifications| Related Products| Inquiry
Products Introduction
Product Features:
• Forged super alloy steel-quenched and tempered.
• Includes locking retaining pin.
• Painted finish.
• Complies with AS3776/EN1677.
• Individually proof tested at 2.5 times WLL.
• Suitable for EN818-2 G80 chains.


Specifications
Specifications
G80 EUROPEAN TYPE CONNECTING LINK
SIZEWEIGHTWLLB.LABLKH
MMKG/PCTONTONMMMMMMMMMM
60.081.124.48157.558427
70.1451.56198.571.854.88.5
7/80.14628189.579.560.58.5
80.162819.59.579.560.58.5
100.33.1512.6251290.56811.5
130.75.321.229151178715
161.183234.519.8148108.419.8
181.841040382115411221
18/201.812.5504124169.5121.524
223.215604826193.5141.526
264.521.284.857.53122015830
32931.5126673828120537
